Confused by so many types of DSC pans? Picking the wrong one can throw off your whole analysis and waste samples.
To get precise thermal analysis, always check the DSC pan’s material, temperature range, sealing, and volume. Your test results depend on these technical parameters more than you think.
A lot hinges on these small details. Let’s look at the most important technical parameters you should always check before buying your next DSC sample pan.

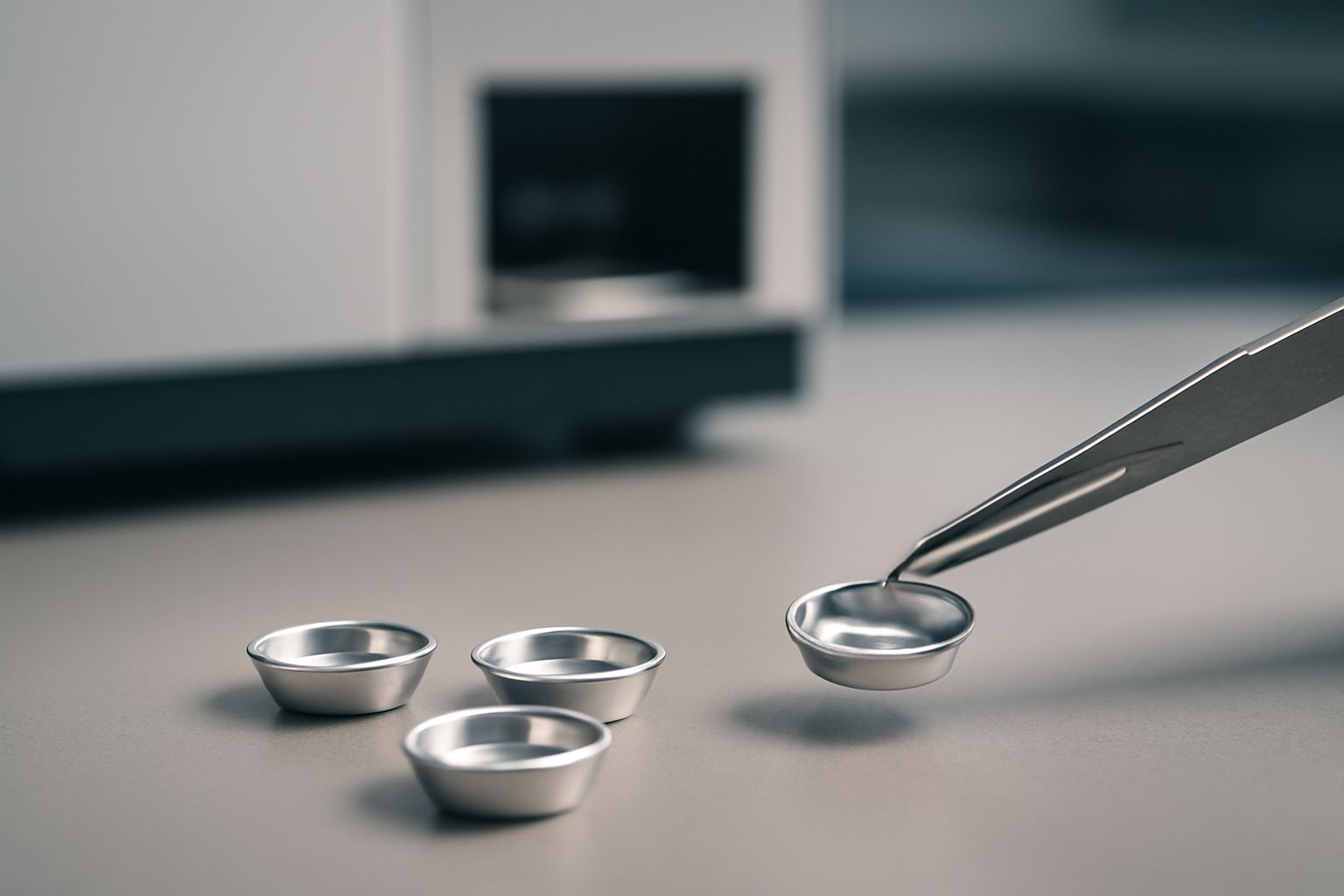

What is the Ideal Material for DSC Sample Pans?
The pan material controls how heat flows to your sample in any DSC test. If the material is wrong, analysis may be off, or results may be hard to repeat.
High-purity aluminum is the best choice for standard DSC pans. Its excellent thermal conductivity and chemical stability support exact results in most laboratory and industrial settings.
| Material | Thermal Conductivity (W/m·K) | Max. Temperature (°C) | Key Advantages | Common Use Case |
|---|---|---|---|---|
| Aluminum (99.99%) | 235 | 600 | Great heat transfer, low cost, compatible with most DSC devices | Routine testing, polymers, organics |
| Platinum | 73 | 1600 | Chemically inert, handles very high heat | High-temp materials, research, metals |
| Silicon | 148 | 900 | Good for special cases (semiconductors) | Electronics, R&D samples |
| PTFE | 0.25 | 260 | Non-reactive, for organic liquids | Volatile liquids, special organics |
Aluminum pans make up nearly 90% of day-to-day DSC work because of their high thermal conductivity and stable composition. For heat-resistance past 600°C, platinum pans are the top pick. Each material brings unique properties, so always match the pan’s chemical and heat performance to the sample you plan to run.

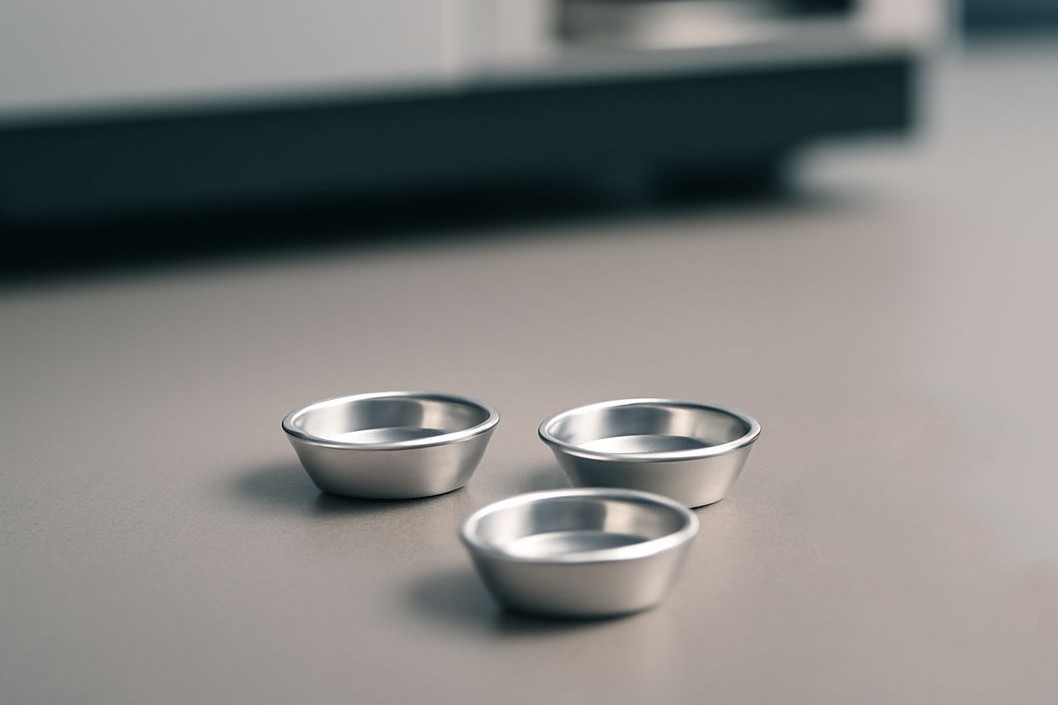

How Does Temperature Range Affect DSC Pan Performance?
Many mistakes in DSC analysis happen when the pan can’t handle the heat. The temperature range you need sets your performance ceiling, not just for safety but for accuracy too.
Always check that your DSC pan’s upper temperature is above your planned test range. Going past rated limits causes deformation, leaks, or even sample loss.
| Pan Type | Max Temperature (°C) | Sample Type | Failure Method | Reference Data |
|---|---|---|---|---|
| Standard Aluminum Pan | 600 | Polymers, pharmaceuticals | Softening, sample stick, leaks | ACS Analytical Chemistry |
| Platinum Crucible | 1600 | Inorganics, metals | No deformation, but cost higher | Wikipedia DSC Sample Holders |
| Vented Pan | 400–500 | Volatile materials | Blow-off, vapor escape | ScienceDirect: DSC Techniques |
| Gold-coated Aluminum | 500–700 | Reactive samples | Delamination, reacts at extremes | Wikipedia: DSC |
If you routinely test samples near the max pan rating, reliability suffers. Always confirm both your method’s max heat and the sample’s possible reactions. Manufacturers test and publish heat limits, so compare your protocol with those numbers before running—never exceed them. For many users, hitting the sweet spot between thermal stability and pan cost is key.
What Are the Key Specifications for Sealed DSC Pans?
Sealed pans are a must if your sample is volatile or might react with air. Without the right seal, you risk losing data before the run ends.
If your experiment needs a sealed pan, check leak resistance, cap design, and how easy it is to seal. This keeps your sample safe throughout the test.
| Parameter | Standard Value or Range | Why It Matters | Best Use | Reference |
|---|---|---|---|---|
| Seal Type | Crimp, O-ring, hermetic | Prevents sample loss or reactant entry | Oxidation-sensitive samples | Wikipedia: Sealing |
| Leak Rate | <1 ppm/min typical | Indicates air-tightness, affects test reliability | Long-duration runs | IEEE: Hermetic Testing |
| Max Pressure | 1–10 bar (special pans) | Needed for volatile or high-pressure reactions | Solvent samples, reactions burning off gas | TA Instruments Data Sheet |
| Cap Fit Tolerance | ±0.01 mm | Tight fit stops leaks, supports repeatable results | All critical experiments | PerkinElmer Guide |
In my experience, hermetic pans work best for moisture-sensitive or volatile samples. Always check for compatibility with your device’s crimper tool and make sure the pan fits the device cup tightly. If long runs or inert atmosphere experiments matter, aim for the lowest possible leak rate.
How to Choose the Right Size and Volume for DSC Sample Pans?
Getting pan size wrong can throw off your DSC data. Too small, and the sample isn’t detected well. Too big, and you risk overflow or poor contact.
Pick a pan size and volume that matches both your instrument and the sample mass range. This keeps heat flow even and your measurement stable.
| Typical Pan Volume (µL) | Use Case | DSC Device Compatibility | Sample Size (mg) | Notes |
|---|---|---|---|---|
| 20–25 | Standard polymer testing | TA Instruments, Mettler, PerkinElmer | 5–12 | Most accurate for small masses |
| 25–40 | Thicker or bulkier materials | NETZSCH, Shimadzu, Hitachi | 12–20 | Check calibration with large samples |
| 5–10 | Trace testing, very small samples | Special micro-DSC, custom pans | 1–3 | Risk of evaporation in open pans |
| 50+ | High-mass, overflow-resistance | Big crucibles, special accessories | 20–50+ | Requires high thermal conductivity |
Always review your own device’s manual for supported calorimeter pan dimensions. For regular research, 20–40 µL pans fit most needs. Large or dense samples may need custom pans. Inconsistent fill or bad contact with the device sensor are top reasons for poor repeatability, so size matters as much as material or seal.
By keeping your focus on these technical specs—material, temperature limits, sealing, and size—you secure both accuracy and lab efficiency in every DSC run.
